Visualisations

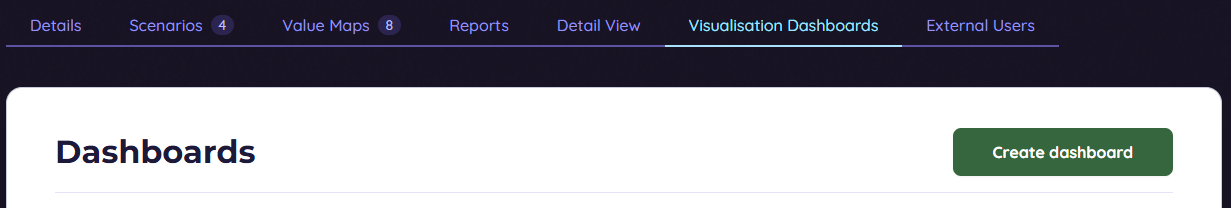

Dashboards

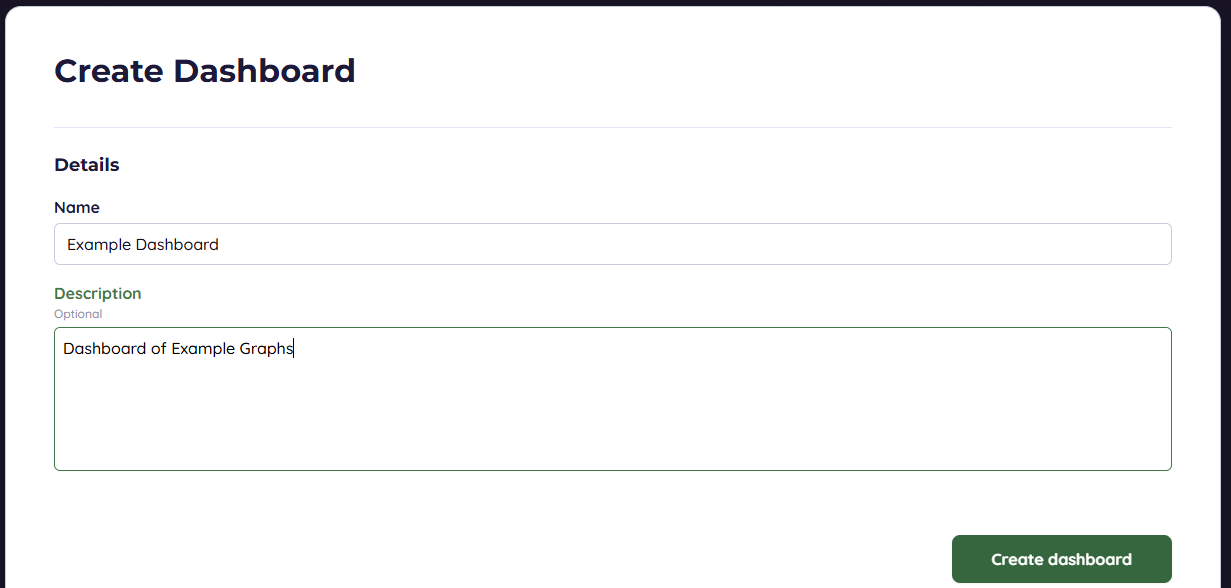

Organise graphs. Create new or edit existing

Charts

Add charts to dashboards
**Chart Details**:

• Chart Title.
• Chart Type: Bar, Horizontal Bar, Line, Doughnut.
• Time Base Selection: Daily (Line), Monthly (Line, Bar, Horizontal Bar) , Yearly (Line, Bar, Horizontal Bar, Doughnut).
• Layout:
  • Enable Legend: Interactive legend, hide/unhide series.
  • Enable Stacking: Series stacked in order added. Multiple Stacks: Series stacked only with others in same stack (3 stacks available).
• Chart Series: Add, edit, remove series.
• Name: Label in Legend.
• Scenario: Source Scenario.

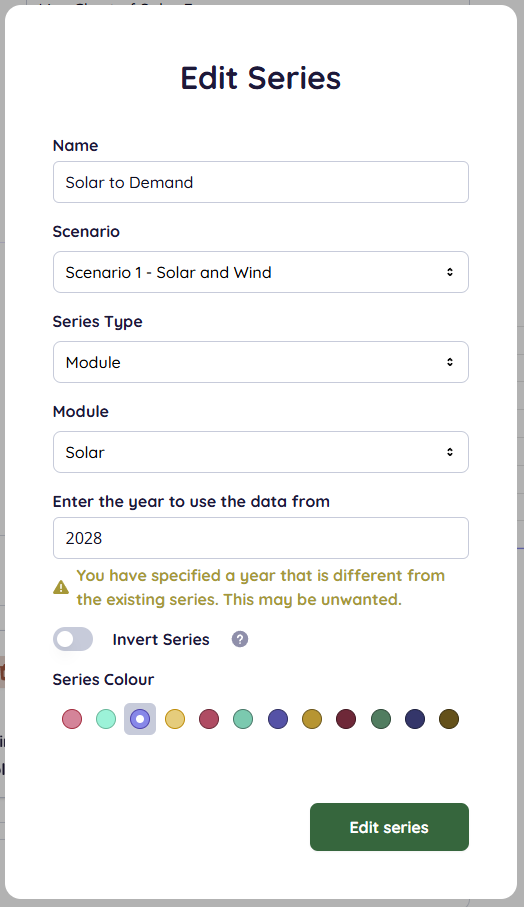

Adding Data / Chart Series

Series Type: Module (total Supply to Load of module or electrical/thermal load)

Installation (total Supply to Load of Installation),

Profit & Loss Entry ,

Financial Analysis Entry (e.g., Capital Expenditure, Cash Flow, Depreciation , Earnings Before Taxation, etc. , ),

Aggregation.

• Year: Not for yearly Time Base. Year of simulation (e.g., "6" for 6th year of simulation).
• Invert Series: Multiplies series by -1.
• Series Colour: 1 of 12 colours.
• Formatting Options:
  • Enable Moving Average: Only if Time Base is Daily. Applies filter. Moving Average Window is number of days either side (e.g., window of 3 gives 7-day average).
  • Rounding Type: Default 3 decimal places. Can be Decimal (chosen decimal places) or Significant (chosen significant figures). Rounding Precision is number of places/figures.
• Axes Options:
  • Axes Pre/Suffixes: Add to axes labels.
  • Axis Titles: Add X & Y axes titles.
